Festo
8165924

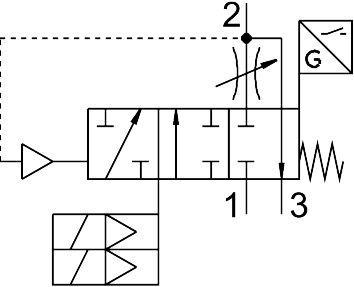

Soft start/quick exhaust valve MS6-SV-1/2-D-10V24P-2M12-SO-RG
The Festo 8165924 is an industrial component featuring a Size 6 MS series design with a 62 mm width dimension, utilizing a piloted 3/2-way, closed, monostable valve function with a pressurization function and piston seat structural design. It provides exhausting and prevention of unexpected start-up safety functions achieving SIL 3 and Category 3, Performance Level d ratings in accordance with DIN EN ISO 13849-1 and DIN EN ISO 13849-2 standards, operating at a pressure range of 0.35 MPa to 1 MPa (3.5 bar to 10 bar) with an internal pilot air supply port and mechanical spring reset. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8165924
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8165924.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Series
- MS
- Size
- 6
- Width dimension
- 62 mm
- Safety function
- Exhausting | Prevention of unexpected start-up (pressurization)
- Safety integrity level (SIL)
- Exhaust/SIL 3 | Avoidance of unexpected start-up (pressurization)/SIL 3
- Performance Level (PL)
- Exhaust/category 3, performance level d | Avoidance of unexpected start-up (pressurization)/category 3, | performance level d
- Note on forced dynamization
- Switching frequency at least once a month
- Structural design
- Piston seat
- Lap
- Negative overlap
- Actuation type
- Electrical
- Pilot air supply port
- Internal
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Position sensing principle
- Piston magnet principle
- Conforms to standard
- DIN EN ISO 13849-1 | DIN EN ISO 13849-2
- Manual override
- None
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable | Pressurization function
- Operating pressure
- 0.35 MPa...1 MPa | 3.5 bar...10 bar
- Pressure gauge
- Red/green scale | with pressure gauge
- C value
- 19.3 l/sbar
- b-value
- 0.21
- Normal nominal ow rate (normalized to DIN 1343)
- 4300 l/min
- Standard ow rate exhaust 6-> 0 bar
- 9000 l/min
