Festo
8166594

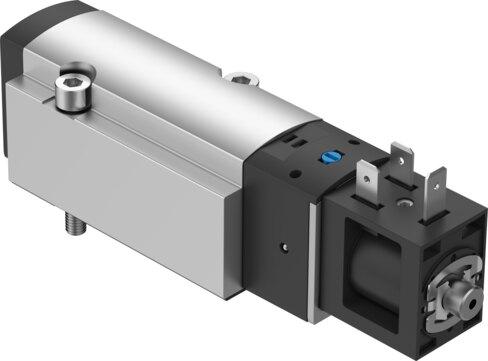

Solenoid valve VSVA-BK-M52-MD-D1-1B2
The Festo part number 8166594 is a 5/2-way monostable industrial component featuring electrical actuation and a piloted type of control. Built with a piston slide and soft sealing principle, this 38 mm wide valve operates at 24V DC with an operating pressure range of 0.3 MPa to 0.8 MPa and delivers a normal nominal flow rate of 1200 l/min according to DIN 1343. It includes a mechanical spring reset, an adjustable exhaust air function, and a sub-base pneumatic working port of size 1 adhering to the ISO 5599-1 standard, complete with IP65 protection when used with a plug socket. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8166594
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8166594.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 38 mm
- Valve size
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.3 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting | Non-detenting
- ISO code
- 152
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- With accessories
- b-value
- 0.26
- C value
- 5.88 l/sbar
- Flow rate of pneumatic valve
- 1343 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1342 l/min
