Festo
8166595

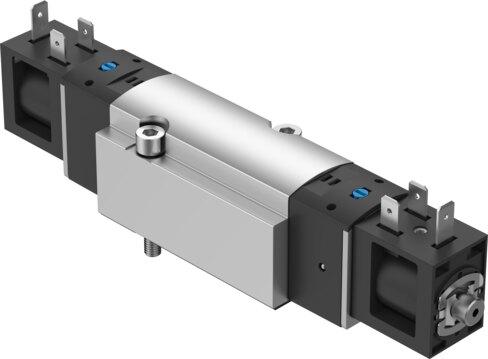

Solenoid valve VSVA-BK-P53E-D-D1-1B2
The Festo 8166595 is an electrical 5/3 exhausted industrial component featuring a piston slide structural design with a soft sealing principle and mechanical spring reset. This piloted valve has a 38 mm width, a 42 mm valve size, a 6.3 mm nominal width, and a normalized nominal flow rate of 1200 l/min according to DIN 1343, operating at 24V DC within a 0.3 MPa to 0.8 MPa pressure range. It includes an adjustable exhaust air function, detenting and non-detenting manual override, an ISO 5599-1 size 1 sub-base pneumatic working port, and an IP65 degree of protection with a plug socket per IEC 60529. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8166595
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8166595.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 38 mm
- Valve size
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.3 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting | Non-detenting
- ISO code
- 157
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- With accessories
- b-value
- 0.26
- C value
- 5.63 l/sbar
- Flow rate of pneumatic valve
- 1289 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1289 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8166595. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
