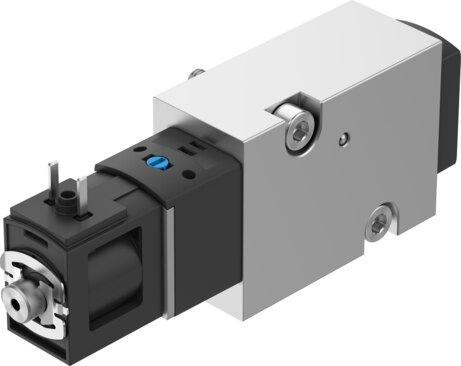

Reference imageConfirm configuration by manufacturer part number.
Festo
8166611
Solenoid valve VSNC-FK-M32C-RD-G18-1C1-S
The Festo 8166611 is a 25.5 mm wide electrical industrial component featuring a 3/2-way closed, monostable valve function with a piston slide and soft sealing principle. Operating at 24V DC within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar), this piloted unit delivers a normal nominal flow rate of 400 l/min through a NAMUR connection pattern conforming to VDI/VDE 3845 standards. It incorporates internal pilot air supply, an adjustable exhaust air function, a b-value of 0.3, positive overlap lap, mechanical and pneumatic spring reset, a detenting manual override, and IP65 protection for mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8166611
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8166611.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 25.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP65
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.3
- C value
- 2.1 l/sbar
- Standard nominal ow rate, exhaust air return 4->3
- 100 l/min
- Switching time off
- 50 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 2.4 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
