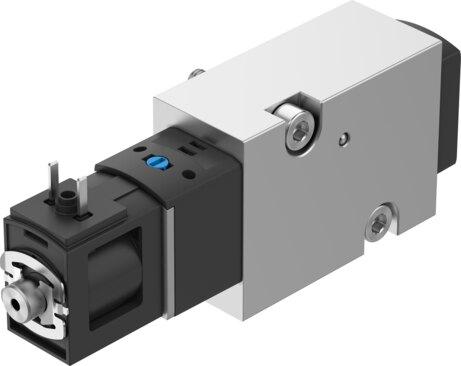

Reference imageConfirm configuration by manufacturer part number.
Festo
8166612
Solenoid valve VSNC-FKA-M32C-RD-G18-1C1-S
The Festo 8166612 is an electrical 3/2-way closed monostable industrial component featuring a piston slide with a sealing ring and a soft sealing principle. This 25.5 mm wide device operates at 24V DC within an operating pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar) and delivers a normal nominal flow rate of 400 l/min according to DIN 1343. Designed with a NAMUR pneumatic working port connection pattern conforming to VDI/VDE 3845 standards, it includes internal pilot air supply, an adjustable exhaust air function, mechanical and pneumatic spring reset methods, and IP65 protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8166612
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8166612.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable | Connections swapped
- Actuation type
- Electrical
- Width
- 25.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP65
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.3
- C value
- 2.1 l/sbar
- Standard nominal ow rate, exhaust air return 4->3
- 100 l/min
- Switching time off
- 50 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 2.4 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
