Festo
8166791

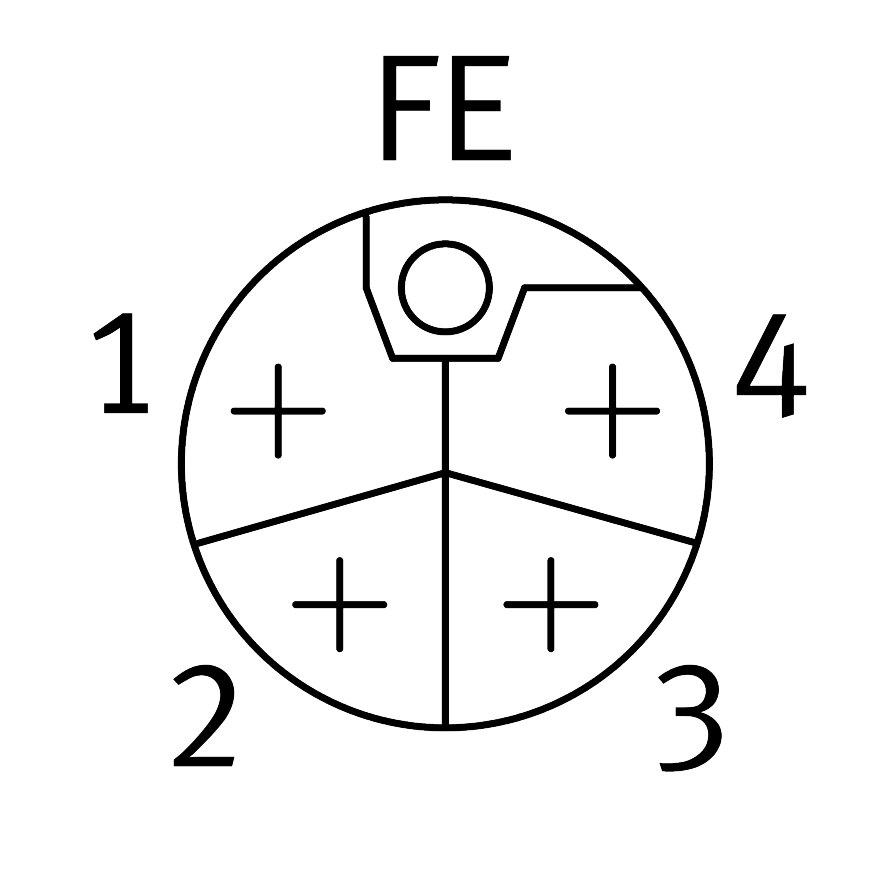

Power supply plug NECL-S-L12G5-C2-Q10
The Festo 8166791 is an industrial component featuring an M12x1, L-coded 5-pin round power supply plug with a straight cable outlet and screw terminal connection technology, adhering to EN 61076-2-111. It delivers a 63 V DC nominal operating voltage, a 16 A current rating at 40° C, 1.5 kV surge resistance, and IP65/IP67 ingress protection while accommodating 8-13 mm cables and 2.5 mm² (AWG14) conductors. This c UL us-recognized unit (UL E474609) utilizes screwed mounting and supports a maximum port cross section of 1.5 mm²/AWG16 with wire end sleeves. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8166791
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8166791.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL E474609
- Type of mounting
- Screwed
- Cable outlet
- Straight
- Product weight
- 42.89 g
- Electrical connection 1, function
- Power supply
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1, L-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 2, connection technology
- Screw terminal
- DC operating voltage range
- 0 V...63 V
- Nominal operating voltage DC
- 63 V
- Current rating at 40° C
- 16 A
- Surge resistance
- 1.5 kV
- Approved cable diameter
- 8-13 mm for electrical connection 1
- Nominal conductor cross section
- 2.5 mm² | AWG14
- Information on port cross section
- max. 1.5 mm²/AWG16 when using wire end sleeves
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -40 °C...105 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA
- Material of screw-type lock
- Die-cast zinc, nickel-plated
- Material of pin contacts
- Gold-plated copper alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8166791. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
