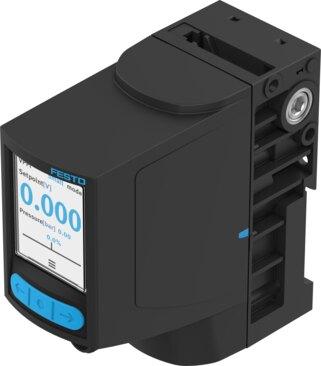

Reference imageConfirm configuration by manufacturer part number.
Festo
8167808
Proportional directional control valve VPWI-
The Festo 8167808 is a 3-way proportional directional control valve featuring an electrical actuation type, soft sealing principle, and a directly controlled poppet valve structural design with a mechanical spring reset. Measuring 42.2 mm by 95.3 mm by 94.3 mm with a 5 mm nominal pressurization and exhaust width, this component operates in any mounting position and includes a 1.77-inch color TFT display with a 128x160 pixel resolution. It incorporates fail-safe normally closed VPWI safety instructions, non-reversible flow direction, short-circuit and reverse polarity protection across all electrical connections, a 30 m maximum cable length, and setpoint input options of 0 to 10 V, 4 to 20 mA, PWM, or digital. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Safety instructions
- Fail-safe position VPWI, normally closed
- Type of control
- directly
- Flow direction
- Non-reversible
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Total leakage
- 5 l/h
- Display type
- Color TFT
- Display size
- 1.77"
- Display resolution
- 128x160 pixels
- Valve function
- 3-way proportional directional control valve
- Reverse polarity protection
- for all electrical connections
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V | 4 - 20 mA | PWM | digital
- Input resistance
- 0.3 kOhm...100 kOhm
- Switching output
- Push-pull
- Max. output current
- 25 mA
- Analog output signal range
- 0 - 10 V | 4 - 20 mA
- Max. load resistance of current output
- 500 Ohm
- Min. load resistance of voltage output
- 2 kOhm
- Operating pressure
- 0 MPa...1.3 MPa | 0 bar...13 bar
- Inlet pressure 1 MPa
- 0 MPa...1.3 MPa
