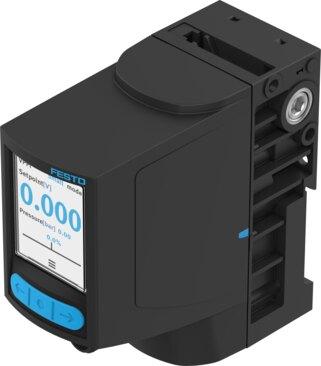

Reference imageConfirm configuration by manufacturer part number.
Festo
8167809
Proportional directional control valve VPWI-5-L-3-G18-B2-V1-D
The Festo 8167809 is an electrically actuated 3-way proportional directional control valve featuring a soft sealing principle, a direct control type, and a mechanical spring reset method with a spring return poppet valve structural design. Measuring 42.2 mm by 95.3 mm by 94.3 mm with 5 mm nominal widths for both pressurization and exhaust, this non-reversible component includes a 1.77" color TFT display with 128x160 pixel resolution, a 0 - 10 V setpoint input, short-circuit and reverse polarity protection for all electrical connections, a 30 m maximum cable length, and a normally closed fail-safe position VPWI for any mounting position with a total leakage of 5 l/h. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167809
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167809.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Safety instructions
- Fail-safe position VPWI, normally closed
- Type of control
- directly
- Flow direction
- Non-reversible
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Total leakage
- 5 l/h
- Display type
- Color TFT
- Display size
- 1.77"
- Display resolution
- 128x160 pixels
- Valve function
- 3-way proportional directional control valve
- Reverse polarity protection
- for all electrical connections
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V
- Input resistance
- 100 kOhm
- Switching output
- Push-pull
- Max. output current
- 25 mA
- Analog output signal range
- 0 - 10 V
- Min. load resistance of voltage output
- 2 kOhm
- Precision analog output in ± %FS
- 1 %FS
- Operating pressure
- 0 MPa...0.2 MPa | 0 bar...2 bar
- Inlet pressure 1 MPa
- 0 MPa...0.6 MPa
- Inlet pressure 1
- 0 bar...6 bar
- Inlet pressure 1 psi
- 0 psi...87 psi
- Inlet pressure 3
- -0.1 MPa...0 MPa
