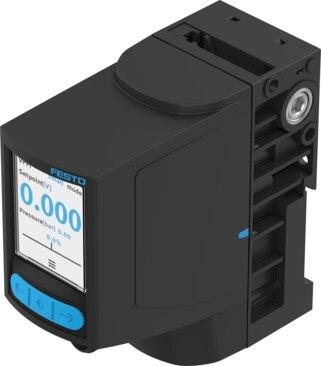

Reference imageConfirm configuration by manufacturer part number.
Festo
8167811
Proportional directional control valve VPWI-5-L-3-G18-6-V1-D
The Festo 8167811 is an electrical 3-way proportional directional control valve featuring a soft sealing principle, direct control type, and a poppet valve structural design with a mechanical spring reset method. Measuring 42.2 mm by 95.3 mm by 94.3 mm with a 5 mm nominal pressurization and exhaust width, this component includes a 1.77-inch color TFT display at 128x160 pixel resolution, a 0 to 10 V setpoint input, and a fail-safe normally closed VPWI safety position. It incorporates reverse polarity and short-circuit protection across all electrical connections, a non-reversible flow direction, and supports any mounting position with a maximum cable length of 30 m and a total leakage of 5 l/h. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167811
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167811.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Safety instructions
- Fail-safe position VPWI, normally closed
- Type of control
- directly
- Flow direction
- Non-reversible
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Total leakage
- 5 l/h
- Display type
- Color TFT
- Display size
- 1.77"
- Display resolution
- 128x160 pixels
- Valve function
- 3-way proportional directional control valve
- Reverse polarity protection
- for all electrical connections
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V
- Input resistance
- 100 kOhm
- Switching output
- Push-pull
- Max. output current
- 25 mA
- Analog output signal range
- 0 - 10 V
- Min. load resistance of voltage output
- 2 kOhm
- Precision analog output in ± %FS
- 1 %FS
- Operating pressure
- 0.6 MPa...0.8 MPa | 6 bar...8 bar
- Inlet pressure 1 MPa
- 0 MPa...1.3 MPa
- Inlet pressure 1
- 0 bar...13 bar
- Inlet pressure 1 psi
- 0 psi...188.5 psi
- Burst pressure
- 4 MPa
