Festo
8167812

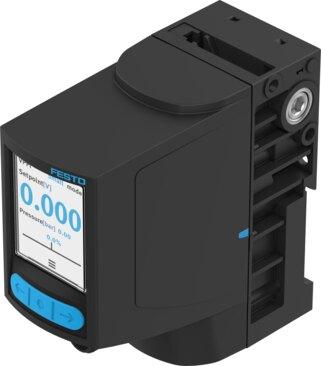

Proportional directional control valve VPWI-5-L-3-G18-6-A4-D
The Festo 8167812 is an electrical 3-way proportional directional control valve featuring a soft sealing principle, a mechanical spring reset method, and a direct structural poppet valve design with spring return. It incorporates a 1.77-inch color TFT display with a 128x160 pixel resolution, a 4 to 20 mA setpoint input, and comprehensive reverse polarity and short-circuit protection for all electrical connections. Engineered with a 5 mm nominal width for both pressurization and exhaust, this component operates in any mounting position with a non-reversible flow direction, a total leakage of 5 l/h, and a fail-safe normally closed VPWI safety position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167812
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167812.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Safety instructions
- Fail-safe position VPWI, normally closed
- Type of control
- directly
- Flow direction
- Non-reversible
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Total leakage
- 5 l/h
- Display type
- Color TFT
- Display size
- 1.77"
- Display resolution
- 128x160 pixels
- Valve function
- 3-way proportional directional control valve
- Reverse polarity protection
- for all electrical connections
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 4 - 20 mA
- Input resistance
- 0.3 kOhm
- Analog output signal range
- 4 - 20 mA
- Max. load resistance of current output
- 500 Ohm
- Precision analog output in ± %FS
- 1 %FS
- Operating pressure
- 0.6 MPa...0.8 MPa | 6 bar...8 bar
- Inlet pressure 1 MPa
- 0 MPa...1.3 MPa
- Inlet pressure 1
- 0 bar...13 bar
- Inlet pressure 1 psi
- 0 psi...188.5 psi
- Burst pressure
- 4 MPa | 40 bar | 580 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8167812. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
