Festo
8167908

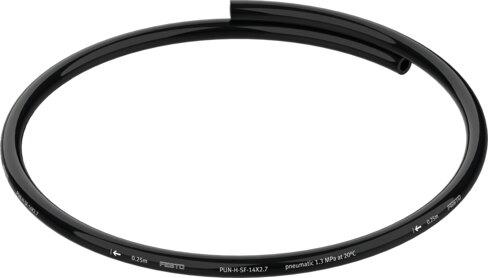

Plastic tubing PUN-H-SF-14X2,7-SW
The Festo 8167908 is an industrial component featuring a 14 mm outside diameter, an 8.6 mm inside diameter, and a black ether-based TPE-U construction with a Shore hardness of D 54 +/-3. This tubing is suitable for energy chains, maintaining a 26 mm minimum bending radius and a 51 mm bending radius relevant for flow rate while supporting an operating pressure of -0.95 bar to 6 bar across its entire temperature range of -35 °C to 80 °C. It accommodates compressed air conforming to ISO 8573-1:2010 [7:-:-] and liquid water through a 14 mm plug connection, exhibiting UL94 HB fire test material and RoHS compliance. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167908
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167908.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 14 mm
- Bending radius relevant for ow rate
- 51 mm
- Inside diameter
- 8.6 mm
- Min. bending radius
- 26 mm
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.3 MPa | -0.95 bar...13 bar | -13.775 psi...188.5 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.7 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -35 °C...80 °C
- Product weight by length
- 0.118 kg/m
- Pneumatic connection
- For plug connection outside diameter 14 mm
- Color
- Black
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
