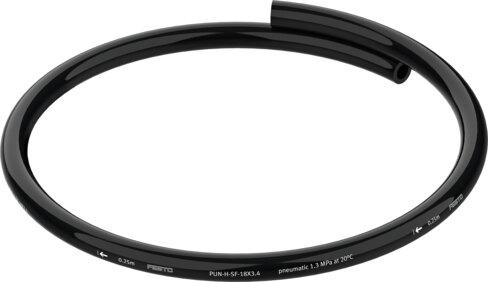

Reference imageConfirm configuration by manufacturer part number.
Festo
8167913
Plastic tubing PUN-H-SF-18X3,4-SW-25
This Festo industrial component, part number 8167913, is a black TPE-U ether-based pneumatic tubing featuring an 18 mm outside diameter, an 11.2 mm inside diameter, and a D 54 +/-3 Shore hardness. The tubing operates within a temperature range of -35 °C to 80 °C, supporting an operating pressure from -0.095 MPa to 0.6 MPa across the entire temperature range and up to 1.3 MPa conditionally, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] or liquid water. Constructed to meet UL94 HB fire testing standards and VDMA24364-B2-L LABS conformity with a product weight of 0.188 kg/m, it is suitable for energy chains with a 38 mm minimum bending radius and a 70 mm bending radius relevant for flow rate. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167913
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167913.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 18 mm
- Bending radius relevant for ow rate
- 70 mm
- Inside diameter
- 11.2 mm
- Min. bending radius
- 38 mm
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.3 MPa | -0.95 bar...13 bar | -13.775 psi...188.5 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.7 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -35 °C...80 °C
- Product weight by length
- 0.188 kg/m
- Color
- Black
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
