Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

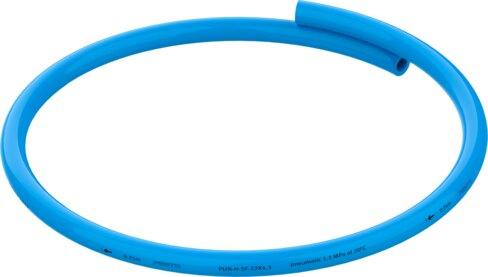

Reference imageConfirm configuration by manufacturer part number.
Festo
8167915
Plastic tubing PUN-H-SF-22X4,3-BL-25
The Festo part number 8167915 is a blue TPE-U ether-based industrial component with a 22 mm outside diameter and a 13.4 mm inside diameter, featuring a 46 mm minimum bending radius and an 83 mm bending radius relevant for flow rate. Suitable for energy chains, this RoHS compliant tubing operates across an ambient temperature range of -35 °C to 80 °C with a product weight of 0.302 kg/m and a Shore hardness of D 54 +/-3. It handles compressed air according to ISO 8573-1:2010 [7:-:-] and liquid water, maintaining an operating pressure of -0.095 MPa to 0.6 MPa across its entire temperature range. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8167915
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8167915.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 22 mm
- Bending radius relevant for ow rate
- 83 mm
- Inside diameter
- 13.4 mm
- Min. bending radius
- 46 mm
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.3 MPa | -0.95 bar...13 bar | -13.775 psi...188.5 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.7 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -35 °C...80 °C
- Product weight by length
- 0.302 kg/m
- Pneumatic connection
- For plug connection outside diameter 22 mm
- Color
- Blue
- Shore hardness
- D 54 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8167915. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
