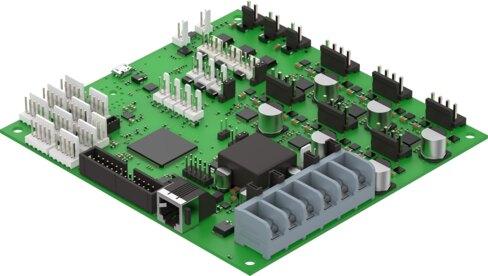

Reference imageConfirm configuration by manufacturer part number.
Festo
8168593
Servo drive CMXL-ST6-NE-C4-1-MP
The Festo part number 8168593 is an industrial component featuring Ethernet fieldbus coupling via a socket and 1 Ethernet connection, operating in direct, homing, or open-loop modes for drives with positioning functions. It operates on a 20.4 to 30 V DC voltage with a nominal logic and load supply of 24 V DC within a permissible range of ±10%, providing 9 digital logic inputs, 19 digital logic outputs at 24 V DC with a 4450 mA current rating per output, and LED status indications. The unit weighs 155 g, is RoHS compliant with VDMA24364 Zone III LABS conformity, maintains an IP00 degree of protection, and functions within an ambient temperature range of 10 °C to 40 °C and storage temperatures from -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8168593
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8168593.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- 10 °C...40 °C
- Product weight
- 155 g
- Degree of protection
- IP00
- Storage temperature
- -20 °C...60 °C
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Fieldbus coupling
- Ethernet
- Number of digital logic inputs
- 9
- Number of digital logic outputs 24 V DC
- 19
- Bus connection
- Socket
- Controller operating mode
- Direct operation | Homing | Open-loop operation
- Process interfacing
- Drives with positioning function
- Operating voltage
- 20.4 - 30 V DC
- Nominal voltage, logic supply DC
- 24 V
- Permissible range of logic voltage
- ±10%
- Nominal voltage, load supply DC
- 24 V
- Load supply permissible range
- ±10%
- Current rating per output
- 4450 mA
- Status indications
- LED (status)
- Ethernet, number
- 1
- Ethernet, supported protocols
- TCP/IP
- USB interface
- USB 2.0
- Storage medium
- microSD
- Total number of axes
- 6
- Activation methods
- TCP/IP
- Supported kinematics systems
- 3-axis gantry machines X-Y-Z
- Baud rate
- 10/100 mbps
- DC operating voltage range
- 20.4 V...30 V
- Nominal operating voltage DC
- 24 V
- Protocol
- Ethernet
