Festo
8170112

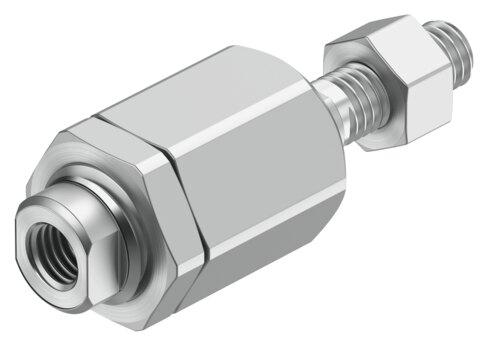

Self-aligning rod coupler DARP-M5-F
The Festo 8170112 industrial component features an M5 size, a product weight of 24 g, and a moderate corrosion resistance class (CRC) of 2 alongside VDMA24364-B1/B2-L LABS conformity. Constructed with a high-alloy stainless steel bushing, housing, and nut, plus case-hardened steel for the spherical washer and ball stud, it operates within an ambient temperature range of -40 °C to 150 °C. RoHS compliant and restricted from certain metal compositions during lithium-ion battery production per its material notes, this part is built for specific operational environments. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8170112
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8170112.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M5
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 24 g
- Note on materials
- RoHS compliant
- Bushing material
- high-alloy stainless steel
- Housing material
- high-alloy stainless steel
- Spherical washer material
- Case-hardened steel
- Ball stud material
- Case-hardened steel
- Nut material
- high-alloy stainless steel
