Festo
8171467

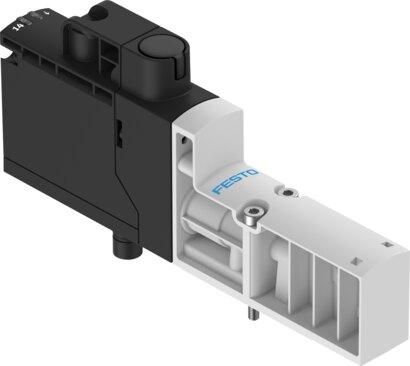

Solenoid valve VSVA-BT-M32CS2-MH-A2-1T5L-PA
The Festo 8171467 is an 18 mm electrical industrial component featuring a 3/2-way, closed, monostable valve function with a plate seat structural design and soft sealing principle. It operates at pressures from 0.3 MPa to 1 MPa (3 bar to 10 bar) with a normal and exhaust nominal flow rate of 125 l/min, incorporating internal pilot air supply, a 100% duty cycle, and holding current reduction. Equipped with IP65 protection, non-detenting manual override, and dual LED status displays for valve actuation and exhausted status via a pressure switch, this non-reversible unit supports any mounting position with mechanical and pneumatic spring reset methods. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8171467
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8171467.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 125 l/min
- Standard nominal ow rate exhaust air
- 125 l/min
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP65
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Additional functions
- Holding current reduction
- Signal status display
- Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
- Switching position sensing
- Via pressure switch, exhausted status
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 1200 µs
- Nominal pick-up current per solenoid coil
- 60 mA up to 35 ms
- Nominal operating voltage DC
- 24 V
- Nominal current with current reduction
- 11 mA after 35 ms
- Coil characteristics
- 24 V DC: 1.6 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
