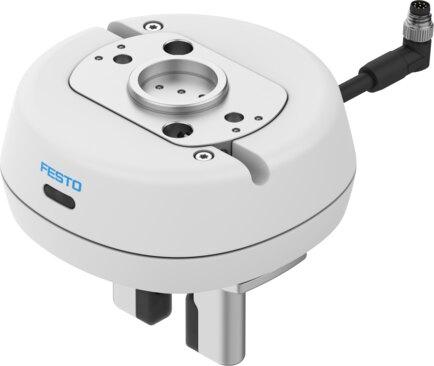

Reference imageConfirm configuration by manufacturer part number.
Festo
8171873
Parallel grippers HPPH-16-16-NC-N-R12
The Festo part number 8171873 is a size 16 pneumatic parallel gripper featuring two jaws, a double-acting mode of operation, and a complete stroke of 16 mm with 8 mm of stroke per gripper jaw. This industrial component utilizes a ball guide, a double piston, a gear rack/pinion structural design, and offers a gripping force backup during closing with integrated linear potentiometer position sensing and blue LED switching status indication. Operating at a pressure range of 0.25 MPa to 0.7 MPa with a maximum frequency of 1 Hz, it achieves a repetition accuracy of 0.06 mm and features zero angular play and zero backlash. Submit your exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8171873
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8171873.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Complete stroke
- 16 mm
- Stroke per gripper jaw
- 8 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Pneumatic gripper repetition accuracy
- 0.06 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- At one end | Not adjustable
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Lateral connection direction | Double piston | Flat mounting type for gripper ngers | Guide | Gear rack/pinion | with gripper nger | Pneumatic gripper | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- With integrated linear potentiometer
- Switching status indication
- LED blue, switching status via signal input
- Operating pressure
- 0.25 MPa...0.7 MPa
- HRC operating pressure
- 0.25 MPa...0.5 MPa | 2.5 bar...5 bar | 36.25 psi...72.5 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 180 ms
- Min. closing time at 6 bar
- 90 ms
- Max. mass per external gripper nger
- 100 g
- Max. current consumption
- 0.1 A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8171873. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
