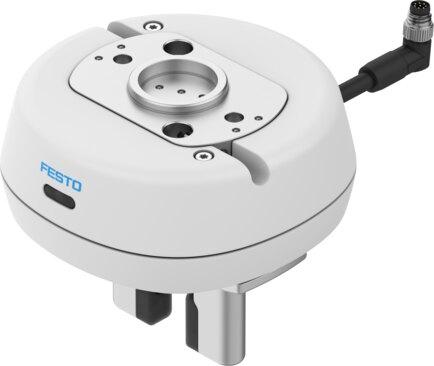

Reference imageConfirm configuration by manufacturer part number.
Festo
8171874
Parallel grippers HPPH-16-16-NC-P-R12
The Festo 8171874 is a double-acting pneumatic parallel gripper featuring two gripper jaws with a size of 16, a complete stroke of 16 mm, and an 8 mm stroke per jaw. Built with a ball guide, gear rack/pinion mechanism, and double piston, this unit delivers a repetition accuracy of 0.06 mm, zero max. gripper jaw angular play, and zero backlash. It includes an integrated linear potentiometer for position sensing, blue LED switching status indication, and offers a gripping force backup during closing with an operating pressure range of 0.25 MPa to 0.7 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8171874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8171874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Complete stroke
- 16 mm
- Stroke per gripper jaw
- 8 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Pneumatic gripper repetition accuracy
- 0.06 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- At one end | Not adjustable
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Lateral connection direction | Double piston | Flat mounting type for gripper ngers | Guide | Gear rack/pinion | with gripper nger | Pneumatic gripper | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- With integrated linear potentiometer
- Switching status indication
- LED blue, switching status via signal input
- Operating pressure
- 0.25 MPa...0.7 MPa
- HRC operating pressure
- 0.25 MPa...0.5 MPa | 2.5 bar...5 bar | 36.25 psi...72.5 psi
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Min. opening time at 6 bar
- 180 ms
- Min. closing time at 6 bar
- 90 ms
- Max. mass per external gripper nger
- 100 g
- Max. current consumption
- 0.1 A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8171874. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
