Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

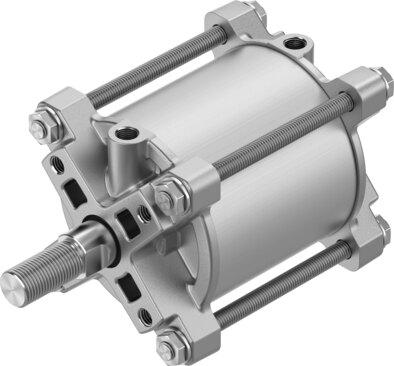

Reference imageConfirm configuration by manufacturer part number.
Festo
8172140
Linear actuator DFPC-80-50-D-V4EX4-44E-9S-W2
The Festo industrial component, part number 8172140, is a double-acting valve actuator featuring an 80 mm piston diameter, an 80 size, a 50 mm stroke, and an ISO 5210 standard valve connection. This structural design integrates a piston, piston rod, tie rod 1, and cylinder barrel, incorporating elastic cushioning rings or pads at both ends and permitting mounting in any position. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar / 29 psi to 116 psi) with a nominal operating pressure of 0.6 MPa (6 bar / 87 psi), it supports position sensing via proximity switch and includes ATEX and UKEX explosion protection certifications for Gas Zone 1 and 2 and Dust Zone 21 and 22, along with EPL Db (GB) and EPL Gb (GB) ratings, II 2G ATEX gas category, II 2D ATEX dust category, and Ex h IIC T4 Gb ignition protection. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172140
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172140.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 80
- Flange hole pattern
- F07
- Stroke
- 50 mm
- Piston diameter
- 80 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Db
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8172140. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
