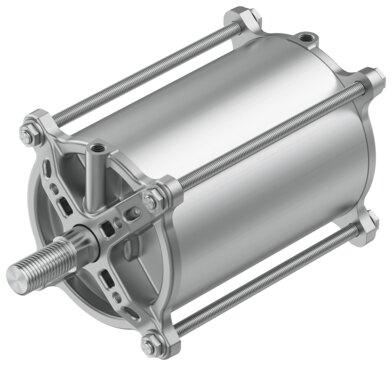

Reference imageConfirm configuration by manufacturer part number.
Festo
8172142
Linear actuator DFPC-160-150-D-V4EX4-36E-31S-M16P-W2
The Festo part number 8172142 is a double-acting industrial component featuring a 160 mm piston diameter, a 160 valve actuator size, a 150 mm stroke, and an ISO 5210 standard connection for valves. Built with a piston, piston rod, tie rod 1, and cylinder barrel, this unit includes elastic cushioning rings or pads at both ends, supports any mounting position, and allows position sensing via proximity switch within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar, 87 psi). It carries CE and UKCA markings as per EU explosion protection directives and UK EX instructions, providing EPL Db (GB) and EPL Gb (GB) certifications for use in ATEX and UKEX Zone 1, Zone 2, Zone 21, and Zone 22 environments with II 2G gas and II 2D dust ATEX categories and Ex h IIC T4 Gb gas ignition protection, alongside available variants including ATEX EX protection approval, special threads, shortened external threads, and extended piston rods. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172142
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172142.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 160
- Flange hole pattern
- F10
- Stroke
- 150 mm
- Piston diameter
- 160 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8172142. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
