Festo
8172143

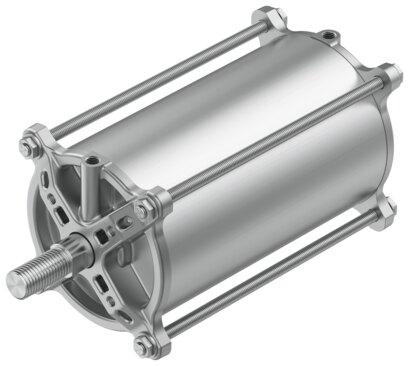

Linear actuator DFPC-160-200-D-V4EX4-39E-31S-M16P-W2
The Festo 8172143 is a double-acting industrial component featuring a 160 mm piston diameter, a 160 valve actuator size, and a 200 mm stroke with a structural design comprising a piston, piston rod, tie rod 1, and cylinder barrel. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar, 87 psi), this unit utilizes elastic cushioning rings or pads at both ends and accommodates any mounting position with position sensing via proximity switch. Certified for hazardous locations with ATEX and UKEX compliance for gas (II 2G, Zone 1 and 2, Ex h IIC T4 Gb) and dust (II 2D, Zone 21 and 22, EPL Db/Gb), it supports variants including ATEX EX protection, special or shortened external piston rod threads, and an extended piston rod with an ISO 5210 standard valve connection and an F10 flange hole pattern. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172143
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172143.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 160
- Flange hole pattern
- F10
- Stroke
- 200 mm
- Piston diameter
- 160 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
