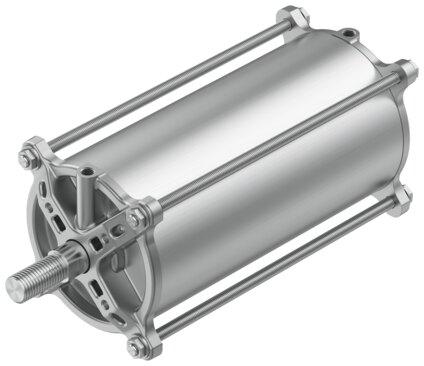

Reference imageConfirm configuration by manufacturer part number.
Festo
8172144
Linear actuator DFPC-160-250-D-V4EX4-43E-27S-M24P-W2
The Festo part number 8172144 is a double-acting industrial component featuring a 160 mm piston diameter, a 160 valve actuator size, a 250 mm stroke, and an ISO 5210 standard valve connection. Built with a piston, piston rod, tie rod 1, and cylinder barrel, this unit includes elastic cushioning rings or pads at both ends, supports any mounting position, and enables position sensing via proximity switch. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, or 29 psi to 116 psi) with a nominal operating pressure of 0.6 MPa (6 bar, 87 psi), it carries CE and UKCA markings per explosion protection directives alongside EPL Db and EPL Gb certifications for Zones 1, 2, 21, and 22, plus II 2G gas and II 2D dust ATEX categories with Ex h IIC T4 Gb gas ignition protection. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172144
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172144.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 160
- Flange hole pattern
- F10
- Stroke
- 250 mm
- Piston diameter
- 160 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
