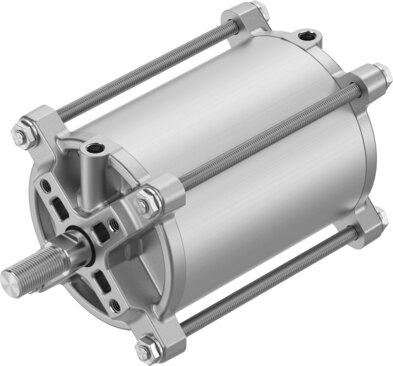

Name: Festo 8172147 Linear actuator DFPC-100-100-D-V4EX4-44E-9S-W2
Brand: Festo

Linear actuator DFPC-100-100-D-V4EX4-44E-9S-W2

The Festo part number 8172147 is a double-acting industrial component featuring a 100 mm piston diameter, 100 mm stroke, and size 100 valve actuator configured with an F07 flange hole pattern and ISO 5210 standard valve connection. Built with a piston, piston rod, tie rod 1, and cylinder barrel, this unit operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar / 29 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar / 87 psi), utilizing elastic cushioning rings or pads at both ends and accommodating any mounting position with position sensing via proximity switch. Certified for hazardous locations, it includes CE and UKCA markings per EU and UK explosion protection directives, EPL Db (GB) and EPL Gb (GB) certifications outside the EU, ignition protection type Ex h IIC T4 Gb for gas, and ATEX/UKEX ratings for gas categories II 2G (Zone 1, Zone 2) and dust categories II 2D (Zone 21, Zone 22), with available variants including ATEX EX protection approval, an extended piston rod, and a piston rod with an external thread shortened at one end. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8172147
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8172147.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 100
Flange hole pattern: F07
Stroke: 100 mm
Piston diameter: 100 mm
Standard connection for valve: ISO 5210
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston | Piston rod | Tie rod 1 | Cylinder barrel
Position sensing: Via proximity switch
Variants: EX protection approval (ATEX) | Piston rod with external thread shortened at one end | Extended piston rod
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.6 MPa | 6 bar | 87 psi
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T120°C Db
