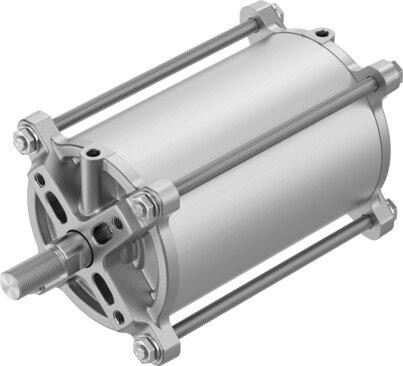

Reference imageConfirm configuration by manufacturer part number.
Festo
8172151
Linear actuator DFPC-125-150-D-V4EX4-40E-17S-M16P-W2
Engineered with a 125 mm piston diameter, 150 mm stroke, and an F10 flange hole pattern, this Festo double-acting industrial component operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar) with a nominal operating pressure of 0.6 MPa (6 bar). The structural design incorporates a piston, piston rod, tie rod 1, and cylinder barrel featuring elastic cushioning rings or pads at both ends for any mounting position, alongside position sensing via proximity switch. Certified for explosive atmospheres with ATEX and UKEX compliance for gas zones 1 and 2 and dust zones 21 and 22, the unit supports variants including ATEX EX protection approval, special threads, shortened external threads, and extended piston rods. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172151
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172151.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 125
- Flange hole pattern
- F10
- Stroke
- 150 mm
- Piston diameter
- 125 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
