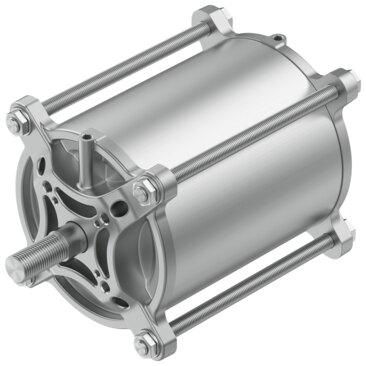

Reference imageConfirm configuration by manufacturer part number.
Festo
8172155
Linear actuator DFPC-250-300-D-V4EX4-45E-45S-M24P-W2
The Festo 8172155 is a double-acting industrial component featuring a 250 mm piston diameter, a 250 valve actuator size, and a 300 mm stroke. Operating within a pressure range of 2.5 bar to 8 bar (36.25 psi to 116 psi) at a nominal operating pressure of 6 bar (87 psi), this unit incorporates elastic cushioning rings or pads at both ends and utilizes an ISO 5210 standard connection for valves with F10 and F14 flange hole patterns. Designed with a piston, piston rod, tie rod 1, and cylinder barrel structural layout, it supports any mounting position and enables position sensing via proximity switch. Certified for explosive atmospheres with ATEX and UKEX compliance for Zones 1, 2, 21, and 22, this assembly is available with variants including ATEX EX protection approval, special threads, shortened external threads, and extended piston rods. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172155
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172155.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 250
- Flange hole pattern
- F10 | F14
- Stroke
- 300 mm
- Piston diameter
- 250 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
