Festo
8172157

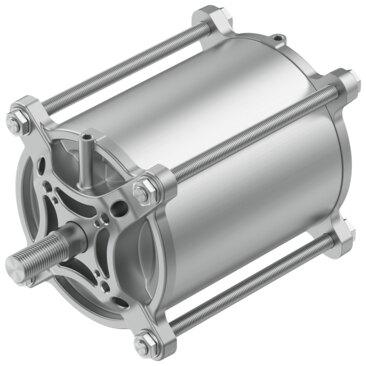

Linear actuator DFPC-250-400-D-V4EX4-3E-45S-M24P-W2
This double-acting industrial component from Festo features a 250 mm piston diameter, a 400 mm stroke, and a size 250 valve actuator with an ISO 5210 standard valve connection and F10 or F14 flange hole patterns. Operating at a nominal pressure of 0.6 MPa (6 bar / 87 psi) across a 0.25 MPa to 0.8 MPa range, the unit incorporates elastic cushioning rings at both ends and allows position sensing via proximity switch in any mounting position. Certified for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas under ATEX and UKEX directives with II 2G and II 2D categories, the assembly utilizes a structural design comprising a piston, piston rod, tie rod 1, and cylinder barrel, with configurable variants including ATEX EX protection, special or shortened threads, and extended piston rods. Submit the exact part number, quantity, and application requirements for a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172157
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172157.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 250
- Flange hole pattern
- F10 | F14
- Stroke
- 400 mm
- Piston diameter
- 250 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
