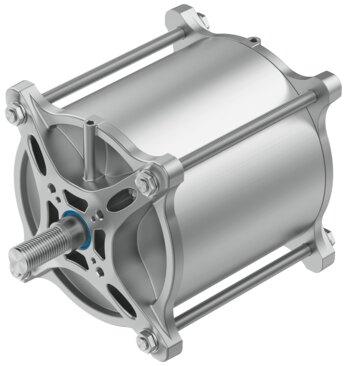

Reference imageConfirm configuration by manufacturer part number.
Festo
8172332
Linear actuator DFPC-320-600-D-V4EX4-7E-57S-M24P-W2
The Festo industrial component, part number 8172332, is a double-acting valve actuator featuring a 320 piston diameter, a 600 mm stroke, and an ISO 5210 standard valve connection with F10 and F14 flange hole patterns. This unit operates within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar / 36.25 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar / 87 psi), utilizing elastic cushioning rings or pads at both ends and accommodating any mounting position with position sensing via proximity switch. Certified for explosive environments under ATEX and UKCA directives, it carries EPL Db (GB) and EPL Gb (GB) certifications for use in gas Zone 1 and Zone 2 as well as dust Zone 21 and Zone 22, and supports variants including ATEX EX protection approval, special threads, shortened external threads, and extended piston rods. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172332
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172332.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 320
- Flange hole pattern
- F10 | F14
- Stroke
- 600 mm
- Piston diameter
- 320 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8172332. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
