Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

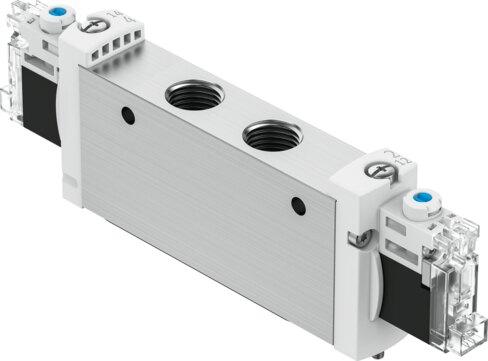

Reference imageConfirm configuration by manufacturer part number.
Festo
8172839
Solenoid valve VUVG-L18-P53E-T-G14-1H2L-F1A
The Festo 8172839 is an 18 mm electrical industrial component featuring a 5/3 exhausted valve function with a piston gate valve structural design and a mechanical spring reset method. It operates on 24V DC within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), delivering a normal nominal flow rate of 910 l/min through a G1/4 pneumatic working port. This piloted unit includes internal pilot air supply, an adjustable exhaust air function, a soft sealing principle, a nominal width of 6.5 mm, indeterminate overlap, IP40 degree of protection, and detenting, non-detenting, or covered manual override options for any mounting position. It holds c UL us recognition under UL MH19482 alongside the RCM compliance mark. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172839
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172839.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 910 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal width
- 6.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 68 ms
- On switching time
- 20 ms
- Changeover time
- 39 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8172839. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
