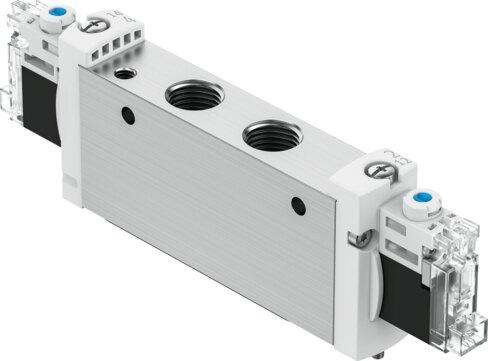

Reference imageConfirm configuration by manufacturer part number.
Festo
8172846
Solenoid valve VUVG-L18-B52-ZT-G14-1H2L-F1A
The Festo part number 8172846 is an 18 mm electrical piston gate valve featuring a 5/2-way bistable valve function with piloted control and external pilot air supply. It delivers a normal nominal flow rate of 1380 l/min through G1/4 pneumatic working ports, operating at a pressure range of -0.9 bar to 10 bar on a 24V DC supply. This component includes adjustable exhaust air function, positive overlap lap, soft sealing principle, and a degree of protection rated at IP40 with RCM and c UL us certifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172846
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172846.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1380 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal width
- 7.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- Yes
- Changeover time
- 15 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse on 1 signal
- 900 µs
- Coil characteristics
- 24 V DC: 0.8 W
- Permissible voltage uctuations
- +/- 10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8172846. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
