Festo
8172848

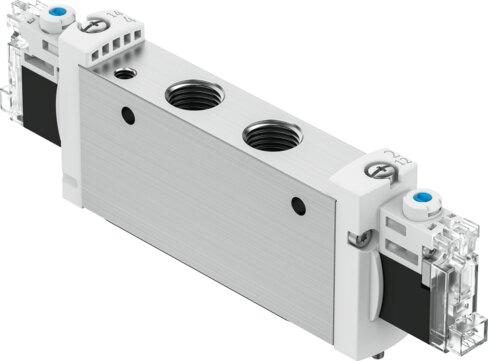

Solenoid valve VUVG-L18-P53E-ZT-G14-1H2L-F1A
The Festo 8172848 is an 18 mm electrical industrial component featuring a 5/3 exhausted valve function with a piston gate valve structural design and soft sealing principle. It delivers a normal nominal flow rate of 910 l/min through G1/4 pneumatic working ports, operating at 24V DC within a pressure range of -0.09 MPa to 1 MPa. This piloted unit includes a mechanical spring reset, adjustable exhaust air function, external pilot air supply port, and versatile manual override options, supported by c UL us and RCM certifications with an IP40 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172848
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172848.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 910 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal width
- 6.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Switching time off
- 68 ms
- On switching time
- 20 ms
- Changeover time
- 39 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
