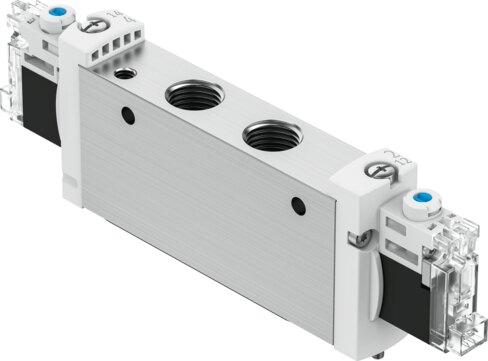

Reference imageConfirm configuration by manufacturer part number.
Festo
8172849
Solenoid valve VUVG-L18-P53U-ZT-G14-1H2L-F1A
This Festo 8172849 industrial component is a 5/3-way pressurized electrical valve featuring an 18 mm valve size, a 6.5 mm nominal width, and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports, operates on 24V DC within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and utilizes a mechanical spring reset method with piloted, external pilot air supply control and adjustable exhaust air function. Certified by UL under certificate MH19482 with RCM compliance mark and c UL us recognition, the IP40-rated unit supports any mounting position, features detenting, non-detenting, and covered manual overrides, and has an indeterminate overlap lap. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8172849
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8172849.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal width
- 6.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Switching time off
- 68 ms
- On switching time
- 20 ms
- Changeover time
- 39 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8172849. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
