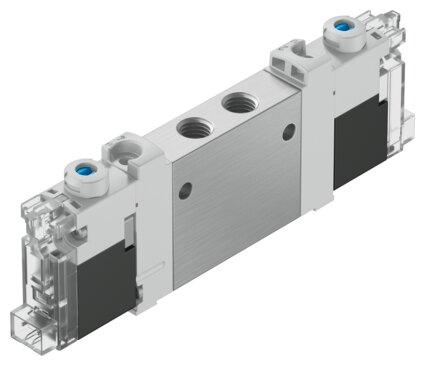

Name: Festo 8173202 Solenoid valve VUVG-LK10-T32C-AT-M7-1H2L-F1A
Brand: Festo

Solenoid valve VUVG-LK10-T32C-AT-M7-1H2L-F1A

The Festo 8173202 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function with a 10 mm valve size and a piston slide structural design with a soft sealing principle. This piloted valve delivers a normal nominal flow rate of 280 l/min through M7 pneumatic working ports, operating at 24V DC within a pressure range of 0.15 MPa to 0.7 MPa (1.5 bar to 7 bar). Certified as c UL us - recognized (OL) under certificate UL MH19482, it incorporates an IP40 degree of protection, an internal pilot air supply port, adjustable exhaust air function, and both detenting and non-detenting manual override capabilities. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8173202
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8173202.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 closed, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 280 l/min
Pneumatic working port: M7
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...0.7 MPa | 1.5 bar...7 bar
Structural design: Piston slide with sealing ring
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Certicate issuing authority: UL MH19482
Degree of protection: IP40
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: LED
Max. switching frequency: 2 Hz
Switching time oﬀ: 14 ms
On switching time: 12 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1600 µs
Max. negative test pulse on 1 signal: 3000 µs
Coil characteristics: 24 V DC: 0.8 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
