Festo
8173207

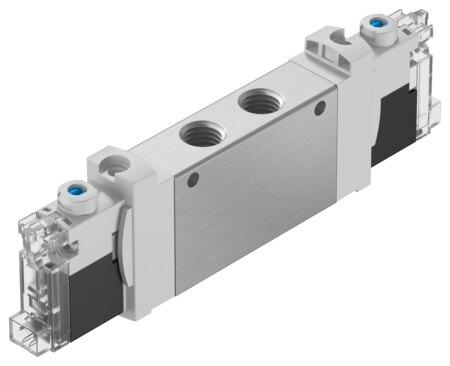

Solenoid valve VUVG-LK14-B52-T-G18-1H2L-F1A
The Festo 8173207 is a 14 mm electrical 5/2-way bistable industrial component featuring a piston slide with a sealing ring and soft sealing principle. It operates at 24V DC with an operating pressure range of 0.15 MPa to 0.7 MPa (1.5 bar to 7 bar), delivering a normal nominal flow rate of 660 l/min through G1/8 pneumatic working ports. This IP40-rated piloted valve includes internal pilot air supply, adjustable exhaust air, positive overlap lap, detenting and non-detenting manual override, an LED signal status display, and c UL us recognition under UL MH19482 with any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8173207
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8173207.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 660 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.7 MPa | 1.5 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Max. switching frequency
- 2 Hz
- Changeover time
- 8 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
- Coil characteristics
- 24 V DC: 0.8 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
