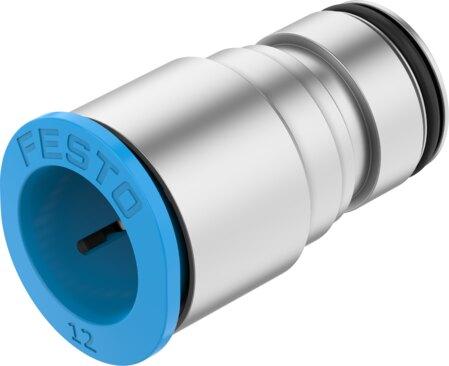

Reference imageConfirm configuration by manufacturer part number.
Festo
8174171
Cartridge NPQX-D-PC19-Q12-P10
This Festo industrial component, part number 8174171, is a straight-design pneumatic fitting featuring a 10 mm nominal width, 19.5 mm tubing insertion depth, and a push-pull structural design with an O-ring seal on the screwed plug. It accommodates compressed air per ISO 8573-1:2010 [7:4:4] or inert gas, supporting operating pressures from -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) across an ambient temperature range of -10 °C to 60 °C. The unit includes a 15 mm cartridge for pneumatic connection 1, a 12 mm outside diameter tubing connection for pneumatic connection 2, a blue releasing ring, a retaining clamp mounting type, and offers a CRC 3 high corrosion stress rating in a 10-pack configuration weighing 7.6 g per unit. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8174171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8174171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 10 mm
- Tubing insertion depth
- 19.5 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 7.6 g
- Type of mounting
- With retaining clamp
- Pneumatic connection 1
- Cartridge 15 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS-compliant
- Housing material
- Aluminum, anodized
- Releasing ring material
- POM
- O-ring material
- HNBR
- Material of tubing seal
- HNBR
- Material of tube retaining claw
- High-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8174171. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
