Festo
8174843

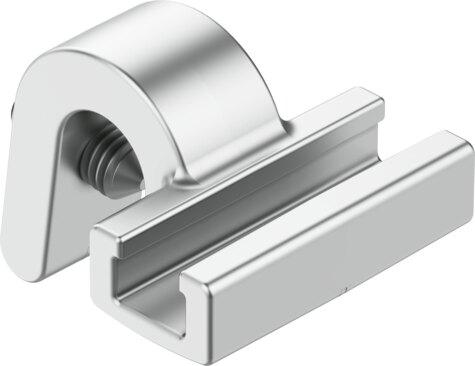

Sensor mounting DASP-V4-8-A-R1
The Festo 8174843 is an industrial component designed for tie rods with a size of 8 and a clamped mounting type in any mounting position. This part fits piston diameters of Ø32, Ø40, Ø50, and Ø63, featuring a high-alloy stainless steel retainer bracket and screws with a tightening torque range of 0.6 Nm to 1 Nm and a product weight of 28 g. Constructed with a corrosion resistance class of 4 for particularly high corrosion stress and VDMA24364-B1/B2-L LABS conformity, it operates within an ambient temperature range of -20 °C to 120 °C while maintaining RoHS compliance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8174843
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8174843.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Design
- For tie rods
- Mounting position
- Any
- for piston Ø
- Ø32 | Ø40 | Ø50 | Ø63
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Tightening torque
- 0.6 Nm...1 Nm
- Product weight
- 28 g
- Type of mounting
- Clamped
- Note on materials
- RoHS compliant
- Retainer bracket material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8174843. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
