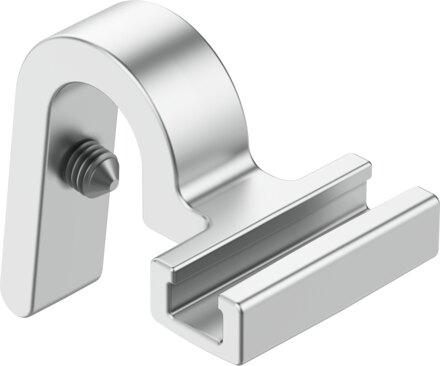

Reference imageConfirm configuration by manufacturer part number.
Festo
8174844
Sensor mounting DASP-V4-12-A-R1
The Festo part number 8174844 is an industrial component featuring a size 12 design for tie rods with a clamped mounting type and any mounting position. Constructed with a high-alloy stainless steel retainer bracket and screws, this RoHS-compliant component provides CRC 4 particularly high corrosion stress resistance and VDMA24364-B1/B2-L LABS conformity. It operates within an ambient temperature range of -20 °C to 120 °C, requires a tightening torque of 0.6 Nm to 1 Nm, weighs 39 g, and is compatible with piston diameters of Ø80, Ø100, and Ø125. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8174844
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8174844.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Design
- For tie rods
- Mounting position
- Any
- for piston Ø
- Ø80 | Ø100 | Ø125
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Tightening torque
- 0.6 Nm...1 Nm
- Product weight
- 39 g
- Type of mounting
- Clamped
- Note on materials
- RoHS compliant
- Retainer bracket material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8174844. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
