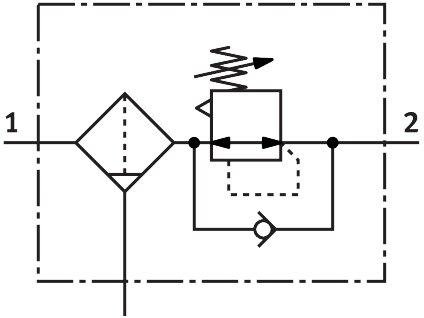

Reference imageConfirm configuration by manufacturer part number.
Festo
8175800
Filter regulator MS4-LFR-1/4-D6-E-P-M-A8-F1A-B
The Festo size 4 industrial component from the MS series is a filter regulator featuring a directly controlled piston regulator, a rotary knob with detent for actuator locking, and a manual rotating condensate drain. It provides a normal nominal flow rate of 1700 l/min within an operating pressure range of 1 bar to 10 bar, achieving 75 percent condensate separation with a 40 µm filtration grade and a 16.5 ml maximum condensate volume. Certified with a corrosion resistance class of 1, VDMA24364-B1/B2-L LABS conformity, and ISO 14644-1 Class 7 cleanroom suitability, this unit is also applicable for the production of Li-ion batteries with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8175800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8175800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator without pressure gauge | Directly controlled piston regulator
- Max. condensate volume
- 16.5 ml
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Degree of condensate separation
- 75 %
- Pressure gauge
- Set up for G1/8
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Pressure regulation range
- 0.3 bar...7 bar
- Max. pressure hysteresis
- 0.05 MPa | 0.5 bar | 7.25 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -5 °C...50 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Pore size
- 40 µm
- Product weight
- 204 g
