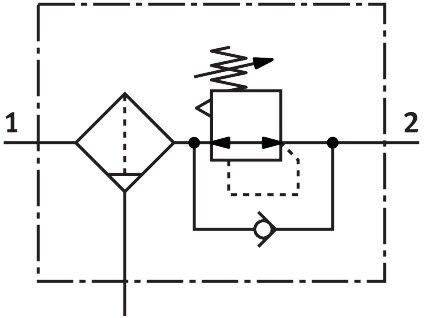

Reference imageConfirm configuration by manufacturer part number.
Festo
8175824
Filter regulator MS6-LFR-1/2-D6-C-P-M-A8-F1A-B
The Festo 8175824 is an MS-series size 6 filter regulator featuring a directly controlled piston design, rotary knob with detent, and manual rotating condensate drain with a maximum volume of 27.3 ml. This unit delivers a normal nominal flow rate of 4750 l/min across a pressure regulation range of 0.3 bar to 7 bar, utilizing a 5 µm filtration grade and achieving a 75% condensate separation degree. Designed for compressed air and inert gases within an operating pressure of 1 bar to 10 bar, the component incorporates constant output pressure, secondary exhausting, and return flow characteristics. Submit the exact part number, quantity, and application requirements to receive a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8175824
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8175824.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator without pressure gauge | Directly controlled piston regulator
- Max. condensate volume
- 27.3 ml
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Degree of condensate separation
- 75 %
- Pressure gauge
- Set up for G1/8
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Pressure regulation range
- 0.3 bar...7 bar
- Max. pressure hysteresis
- 0.035 MPa | 0.35 bar | 5.075 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 4750 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Compatibility with ester oil not given
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -5 °C...50 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Pore size
- 5 µm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8175824. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
