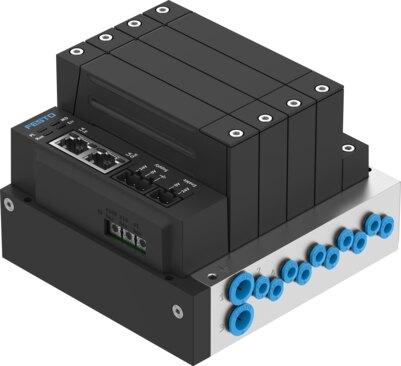

Reference imageConfirm configuration by manufacturer part number.
Festo
8176050
Valve manifold VTEP-
The Festo 8176050 industrial component features a fixed grid valve manifold design with a width dimension of 16 mm and accommodates up to 5 valve positions within dimensions of 119 mm x 110 mm x 82 mm, 71 mm x 110 mm x 82 mm, or 87 mm x 110 mm x 82 mm. Built with NBR seals, RoHS-compliant materials, and a UL94 HB fire test rating, this IP20-rated unit operates with compressed air, inert gases, or oxygen across 1 pressure zone while maintaining VDMA24364 Zone III LABS conformity and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8176050
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8176050.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve manifold design
- Fixed grid
- Width dimension
- 16 mm
- Max. no. of valve positions
- 5
- Dimensions W x L x H
- 119 mm x 110 mm x 82 mm | 71 mm x 110 mm x 82 mm | 87 mm x 110 mm x 82 mm
- Application note
- The product is suitable for industrial purposes only. Radio interference | suppression measures may be required in residential areas. | For indoor use only
- Max. no. of pressure zones
- 1
- Degree of protection
- IP20
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Contamination level
- 2
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material re test
- UL94 HB
- Nominal altitude of use above sea level
- < 3000 m NHN
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases | Oxygen
- Information on operating and pilot media
- Operation with oil lubrication not possible | Condensation in the valve not allowed | if the operating medium contains concentrated oxygen, sufficient | ventilation with ambient air must be ensured in order to avoid increased | oxygen concentrations in the environment | Maximum particle size 40 µm
- Inlet pressure 1 MPa
- 0 MPa...0.7 MPa
- Inlet pressure 1
- 0 bar...7 bar
- Inlet pressure 1 psi
- 0 psi...101.5 psi
- Inlet pressure 3
- -0.1 MPa...0 MPa | -1 bar...0 bar | -14.5 psi...0 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
