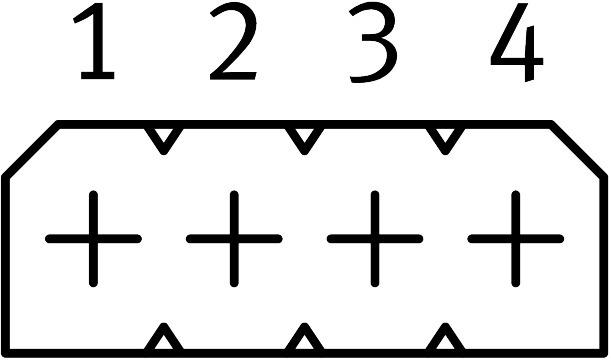

Reference imageConfirm configuration by manufacturer part number.
Festo
8176191
Rotary gripper module EHMD-50-RE-GE-15
The Festo part number 8176191 is an electric rotary actuator and electric gripper drive featuring a size 50 structural design with infinite rotation angle and a 1:1 gear ratio. It operates as an electric parallel gripper with two gripper jaws providing a stroke per jaw of 15 mm, a controllable stroke range from 0 mm to 15 mm, and a reversing backlash of 0.8 mm. This unit incorporates a hybrid stepper motor for rotation with a 1.8-degree full step angle and ±5% tolerance, alongside integrated motor encoders for position sensing in both turning and gripping operations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8176191
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8176191.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Rotation angle
- Innite
- Stroke per gripper jaw
- 15 mm
- Controllable stroke range per gripper jaw
- 0 mm...15 mm
- Reversing backlash
- 0.8 mm
- Step angle with full step
- 1.8 deg
- Step angle full step, rotation
- 1.8 deg
- Step angle tolerance
- ±5%
- Stepping angle tolerance, rotation
- ±5%
- Number of gripper jaws
- 2
- Mounting position
- Any
- Structural design
- Electric rotary actuator | electric gripper drive
- Mode of operation
- Electric parallel gripper
- Mode of operation, rotation
- Hybrid stepper motor
- Gear ratio
- 1:1
- Position sensing
- Turning: Motor encoder | Gripping: Motor encoder
- Gripper function
- Parallel
- Motor type
- Stepper motor
- Homing
- Turning: Encoder index | Gripping: Fixed-stop block
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
- Max. output speed
- 240 rpm
- Max. speed
- 25 mm/s
- Max. homing speed
- 5 mm/s | 25 mm/s
- Max. gripping speed per gripper jaw
- 10 mm/s
- Duty cycle
- 100%
- Insulation protection class
- B
