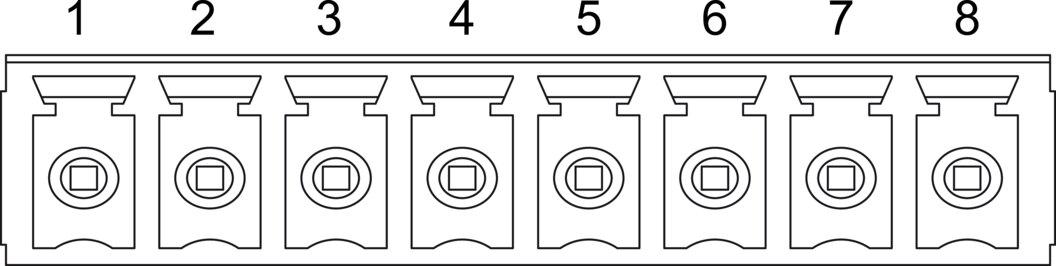

Reference imageConfirm configuration by manufacturer part number.
Festo
8176415
Digital input/output module CPX-AP-L-16NDI8NDO-PI
The Festo industrial component, part number 8176415, features AP protocol support and measures 90 mm in width, 152 mm in length, and 70 mm in height with a product weight of 200 g. Designed for DIN rail mounting, this IP20-rated unit operates within an ambient temperature range of -20 °C to 50 °C and withstands storage temperatures from -40 °C to 70 °C alongside non-condensating relative air humidity of 5% to 95%. It complies with EU EMC and RoHS directives, holds KC-EMV and RCM certifications, and incorporates RoHS-compliant, halogen-free materials with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8176415
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8176415.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- AP
- Dimensions W x L x H
- 90 mm x 152 mm x 70 mm
- Type of mounting
- With DIN rail
- Product weight
- 200 g
- Ambient temperature
- -20 °C...50 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP20
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Overvoltage category
- II
- Max. cable length
- 30 m outputs | 30 m inputs | 50 m system communication
- Information on max. cable length
- Power supply according to nominal voltage
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- KC characters
- KC-EMV
- Certication
- RCM compliance mark
- Note on materials
- RoHS compliant | Halogen-free
- Diagnostics via LED
- Diagnostics per module | Load power supply | Status per channel
- Diagnose per internal communication
- Load switch-off | Short-circuit/overload in output signal | Short circuit/overload in sensor supply | Electronics/sensors overvoltage | Overvoltage load
