Name: Festo 8176874 Ball screw axis ELGD-BS-KF-60- -
Brand: Festo

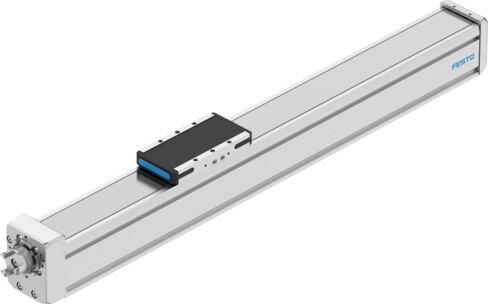

Ball screw axis ELGD-BS-KF-60- -

The Festo 8176874 is an electromechanical linear axis featuring a ball screw design with a 12 mm screw diameter, a 5 mm/U to 10 mm/U spindle pitch, and a working stroke adjustable from 50 mm to 1000 mm. This size 60 component integrates a recirculating ball bearing guide, supports stepper or servo motors, and achieves a repetition accuracy of ±0.01 mm with a ball screw reversing backlash of ±0.02 mm. It operates at a 100% duty cycle with a maximum acceleration of 15 m/s², offering position sensing for inductive sensors alongside incremental linear potentiometer measurement and a stroke reserve of 0 mm. The assembly is rated for any mounting position, meets VDMA24364-C1-L LABS conformity, aligns with ISO 14644-1 Cleanroom Class 4 or Class 7 standards, and is suitable for lithium-ion battery production with reduced Cu/Zn/Ni values. Request a formal quote by submitting the exact part number, quantity, and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8176874
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8176874.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 50 mm...1000 mm
Size: 60
Stroke reserve: 0 mm
Ball screw reversing backlash: ±0.02 mm
Screw diameter: 12 mm
Spindle pitch: 5 mm/U...10 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Measuring principle of linear potentiometer: Incremental
Position sensing: For inductive sensors
Max. acceleration: 15 m/s²
Repetition accuracy: ±0.01 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.001 J
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 508600 mm⁴
2nd moment of area Iz: 685700 mm⁴
No-load torque at maximum travel speed: 0.107 Nm...0.14 Nm
No-load torque at minimum travel speed: 0.045 Nm...0.047 Nm
