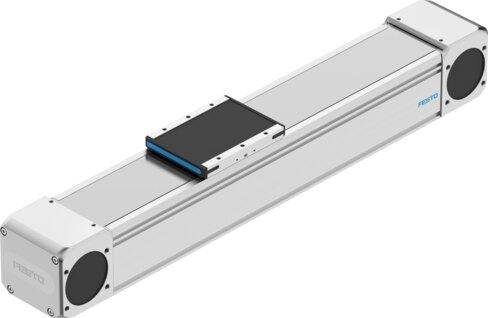

Reference imageConfirm configuration by manufacturer part number.
Festo
8176886
Toothed belt axis ELGD-TB-KF-120- -
The Festo 8176886 is an electromechanical linear axis featuring a toothed belt with a 5 mm pitch, a 55.7 mm drive pinion effective diameter, and a size 120 structural design accommodating a working stroke of 50 mm to 8500 mm with a 0 mm stroke reserve. Driven by either a stepper or servo motor, this unit achieves a maximum speed of 3 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.04 mm, and a 100% duty cycle utilizing a recirculating ball bearing guide and an incremental linear potentiometer measuring principle. It offers position sensing for inductive sensors, VDMA24364-C1-L LABS conformity, suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a), ISO 14644-1 cleanroom compliance up to Class 4 with a vacuum insert, storage temperatures from -20 °C to 60 °C, and any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8176886
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8176886.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 55.7 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 120
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 50 m/s²
- Max. speed
- 3 m/s
- Repetition accuracy
- ±0.04 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.001 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 3550000 mm⁴
- 2nd moment of area Iz
- 8985000 mm⁴
- Max. driving torque
- 36.2 Nm
- Max. force Fy
- 4300 N...8400 N
- Max. force Fz
- 4300 N...8400 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8176886. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
