Name: Festo 8177443 Shut-off valve VBOC-L2-E-S7-P-M12-G18-E
Brand: Festo

Shut-off valve VBOC-L2-E-S7-P-M12-G18-E

Festo Shut-off valve VBOC-L2-E-S7-P-M12-G18-E, part number 8177443, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.

Request pricing and availabilityCommercial response for your destination and required quantity.

Request a Quote

Manufacturer: Festo
Part number: 8177443
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8177443.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationTechnical documents are stored and served from our system.

Verified configuration

Technical Specifications

Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.

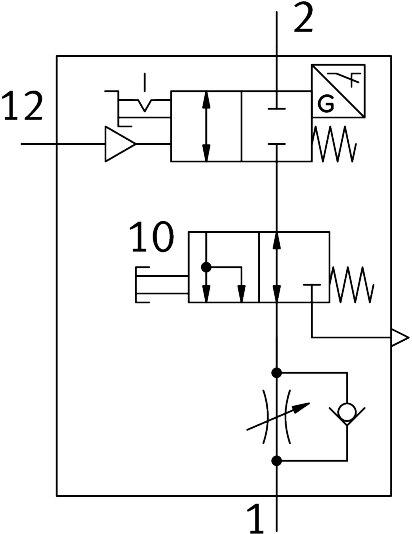

Valve function: 2/2-way, closed, monostable
Selection of additional function: Exhaust air one-way ow control function
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Nominal ow rate in ow control direction standardized according to ISO: 170 l/min
Nominal ow rate in non-return direction standardized according to ISO: 150 l/min...200 l/min
Standard ow rate in ow control direction 0.6->0 MPa (6->0 bar, 87-: 310 l/min
Standard ow rate in non-return direction at 0.6->0 MPa (6->0 bar, 87-: 300 l/min...400 l/min
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Ambient temperature: -5 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Mounting position: Any
Selection of additional function 2: Manual exhaust
Special features: Welding spatter-resistant
Type of seal on screwed plug: Sealing ring
Manual override: Detenting
Reset method: Mechanical spring
Pilot air supply port: External
