Name: Festo 8177444 Shut-off valve VBOC-L2-E-S7-P-M12-G14-E
Brand: Festo

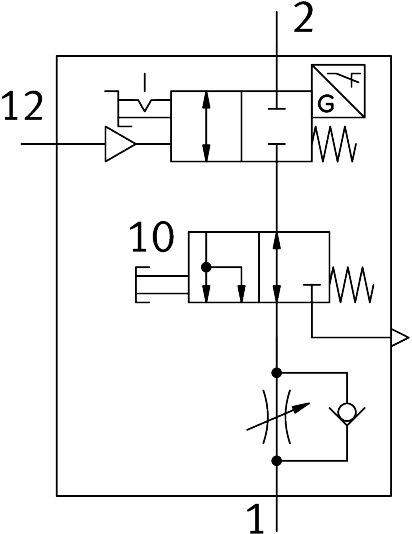

Shut-off valve VBOC-L2-E-S7-P-M12-G14-E

The Festo part number 8177444 is a 2/2-way, closed, monostable industrial component featuring an exhaust air one-way flow control function and manual exhaust capability. Designed with G1/4 pneumatic connections on both ports and external thread screw-in mounting, this pneumatically actuated valve operates within a pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar) and ambient temperatures from -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. It delivers a nominal flow rate in the flow control direction of 360 l/min and incorporates welding spatter-resistant construction with a detenting manual override and sealing ring on the screwed plug. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8177444
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8177444.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2/2-way, closed, monostable
Selection of additional function: Exhaust air one-way ow control function
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Nominal ow rate in ow control direction standardized according to ISO: 360 l/min
Nominal ow rate in non-return direction standardized according to ISO: 290 l/min...410 l/min
Standard ow rate in ow control direction 0.6->0 MPa (6->0 bar, 87-: 650 l/min
Standard ow rate in non-return direction at 0.6->0 MPa (6->0 bar, 87-: 620 l/min...740 l/min
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Ambient temperature: -5 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Mounting position: Any
Selection of additional function 2: Manual exhaust
Special features: Welding spatter-resistant
Type of seal on screwed plug: Sealing ring
Manual override: Detenting
Reset method: Mechanical spring
Pilot air supply port: External
