Name: Festo 8177446 Shut-off valve VBOC-L2-E-S7-P-M12-G12-E
Brand: Festo

Shut-off valve VBOC-L2-E-S7-P-M12-G12-E

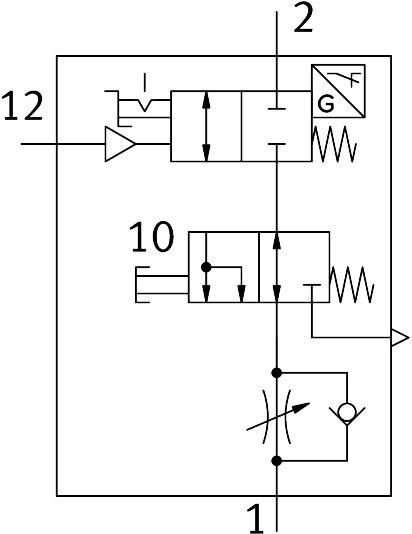

The Festo part number 8177446 is a 2/2-way, closed, monostable industrial component featuring a pneumatic actuation type and G1/2 pneumatic connections for both ports 1 and 2. This welding spatter-resistant device includes an exhaust air one-way flow control function, manual exhaust, and a detenting manual override, operating within a pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar) and an ambient temperature range of -5 °C to 60 °C. It provides a standardized nominal flow rate of 860 l/min in the flow control direction and 1140 l/min to 1240 l/min in the non-return direction, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with screw-in external thread mounting in any position. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8177446
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8177446.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2/2-way, closed, monostable
Selection of additional function: Exhaust air one-way ow control function
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Nominal ow rate in ow control direction standardized according to ISO: 860 l/min
Nominal ow rate in non-return direction standardized according to ISO: 1140 l/min...1240 l/min
Standard ow rate in ow control direction 0.6->0 MPa (6->0 bar, 87-: 1430 l/min
Standard ow rate in non-return direction at 0.6->0 MPa (6->0 bar, 87-: 1880 l/min...2100 l/min
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Ambient temperature: -5 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Mounting position: Any
Selection of additional function 2: Manual exhaust
Special features: Welding spatter-resistant
Type of seal on screwed plug: Sealing ring
Manual override: Detenting
Reset method: Mechanical spring
Pilot air supply port: External

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8177446. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
