Name: Festo 8177465 Shut-off valve VBOC-L2-E-S7-P-M8-G12-E
Brand: Festo

Shut-off valve VBOC-L2-E-S7-P-M8-G12-E

Engineered with a 2/2-way closed monostable valve function and G1/2 pneumatic connections on both ports, this Festo industrial component features an integrated exhaust air one-way flow control function with manual exhaust and detenting manual override. The unit provides a standardized nominal flow rate of 860 l/min in the flow control direction and 1140 l/min to 1240 l/min in the non-return direction, operating within a pressure range of 0.05 MPa to 1 MPa. Built with welding spatter-resistant properties, it supports an ambient temperature range of -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4] and complies with EU and UKCA directives for EMC and RoHS. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8177465
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8177465.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

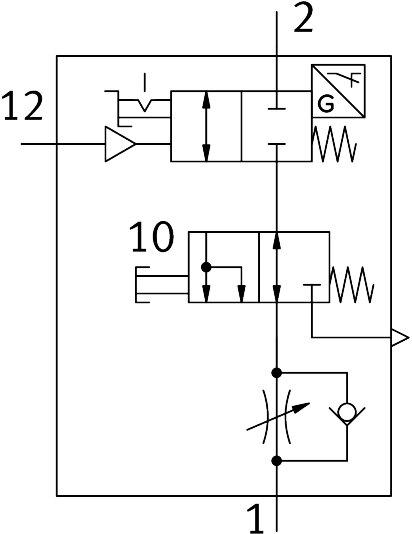

Valve function: 2/2-way, closed, monostable
Selection of additional function: Exhaust air one-way ow control function
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Nominal ow rate in ow control direction standardized according to ISO: 860 l/min
Nominal ow rate in non-return direction standardized according to ISO: 1140 l/min...1240 l/min
Standard ow rate in ow control direction 0.6->0 MPa (6->0 bar, 87-: 1430 l/min
Standard ow rate in non-return direction at 0.6->0 MPa (6->0 bar, 87-: 1880 l/min...2100 l/min
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Ambient temperature: -5 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Mounting position: Any
Selection of additional function 2: Manual exhaust
Special features: Welding spatter-resistant
Type of seal on screwed plug: Sealing ring
Manual override: Detenting
Reset method: Mechanical spring
Pilot air supply port: External
