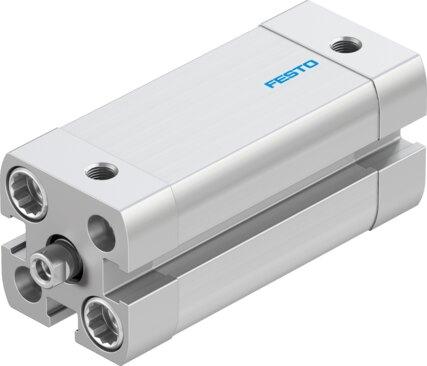

Name: Festo 8178328 Compact cylinder ADN-12-35-I-P-A
Brand: Festo

Compact cylinder ADN-12-35-I-P-A

The Festo 8178328 is a double-acting industrial component featuring a 12 mm piston diameter, a 35 mm stroke, and an internal M3 piston rod thread built to ISO 21287 standards. Designed with elastic cushioning rings at both ends and integrated position sensing via proximity switch, this unit operates within a pressure range of 1 bar to 10 bar across an ambient temperature of -20 °C to 80 °C. It delivers a theoretical force of 68 N advancing and 51 N retracting at 6 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8178328
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8178328.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 35 mm
Piston diameter: 12 mm
Piston rod thread: M3
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: Internal thread
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.07 J
Theoretical force at 6 bar, retracting: 51 N
Theoretical force at 6 bar, advancing: 68 N
Moving mass: 17 g
Product weight: 105 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: M5
Note on materials: RoHS compliant
Flange screws material: Steel
Cover material: Wrought aluminum alloy, anodized
Seals material: TPE-U(PUR)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8178328. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
