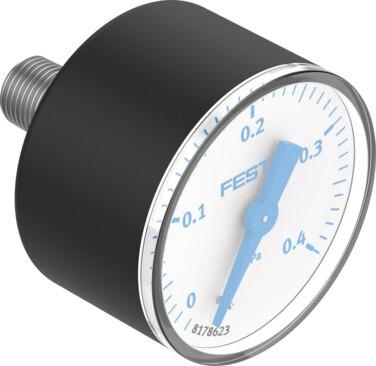

Reference imageConfirm configuration by manufacturer part number.
Festo
8178623
Pressure gauge PAGN-40-0.4M-R18-1.6-CPA
The Festo 8178623 is a Bourdon tube pressure gauge featuring a 40 nominal size, an in-line installation design, and a centered rear R1/8 pneumatic connection. Built with brass media-contacting materials and conforming to EN 837-1, this component delivers a 0 MPa to 0.4 MPa display and operating pressure range with an accuracy class of 1.6 and IP43 protection. It operates within a medium and ambient temperature range of -20 °C to 60 °C for inert gases and neutral liquids, excluding acetylene and oxygen. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8178623
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8178623.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...0.4 MPa
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Certication
- CPA
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...0.4 MPa | 0 bar...4 bar | 0 psi...58 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1.6
- Degree of protection
- IP43
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- PS
- Housing colour
- Black
- Product weight
- 60 g
