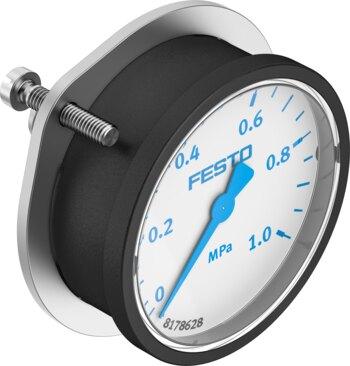

Reference imageConfirm configuration by manufacturer part number.
Festo
8178628
Flanged pressure gauge PAGN-P-50-1M-G14-CPA
The Festo 8178628 is a Bourdon tube pressure gauge featuring a nominal size of 50 and front panel mounting with a rear-centered G1/4 pneumatic connection. Conforming to EN 837-1 with CPA certification, this component operates within a 0 MPa to 1 MPa, 0 bar to 10 bar, or 0 psi to 145 psi pressure range for inert gases and neutral liquids excluding acetylene and oxygen. The unit includes brass media-contacting materials, an accuracy class of 2.5, an IP43 degree of protection, and an intermittent load factor of 0.66. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8178628
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8178628.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 MPa...1 MPa
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 50
- Certication
- CPA
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- Front panel mounting
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
- Inspection window material
- SAN
- Fastening ring material
- Steel
- Material of screws
- Steel
